Bitmap Towels // weaving pattern for 4-shaft looms by Felicia Lo

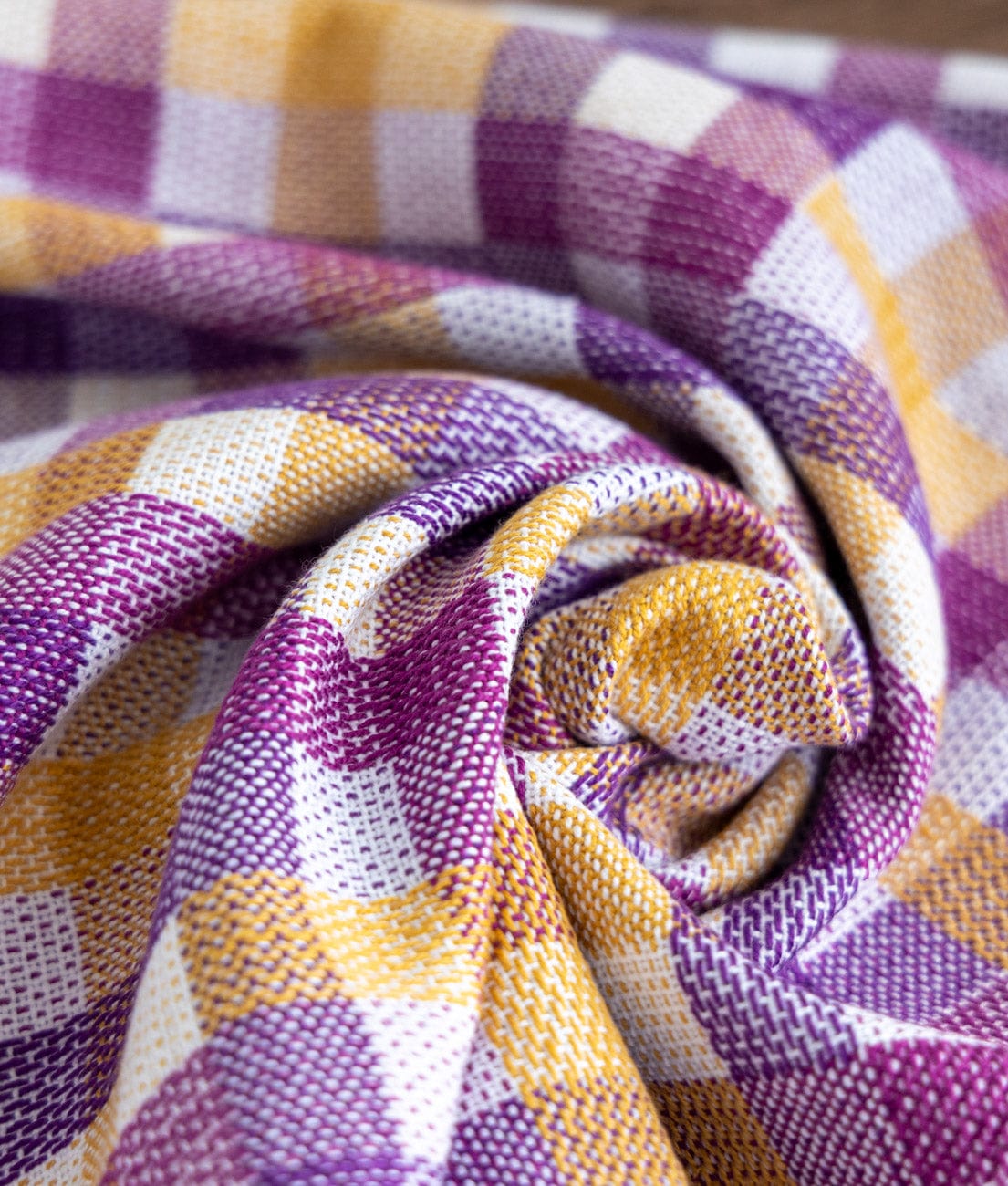

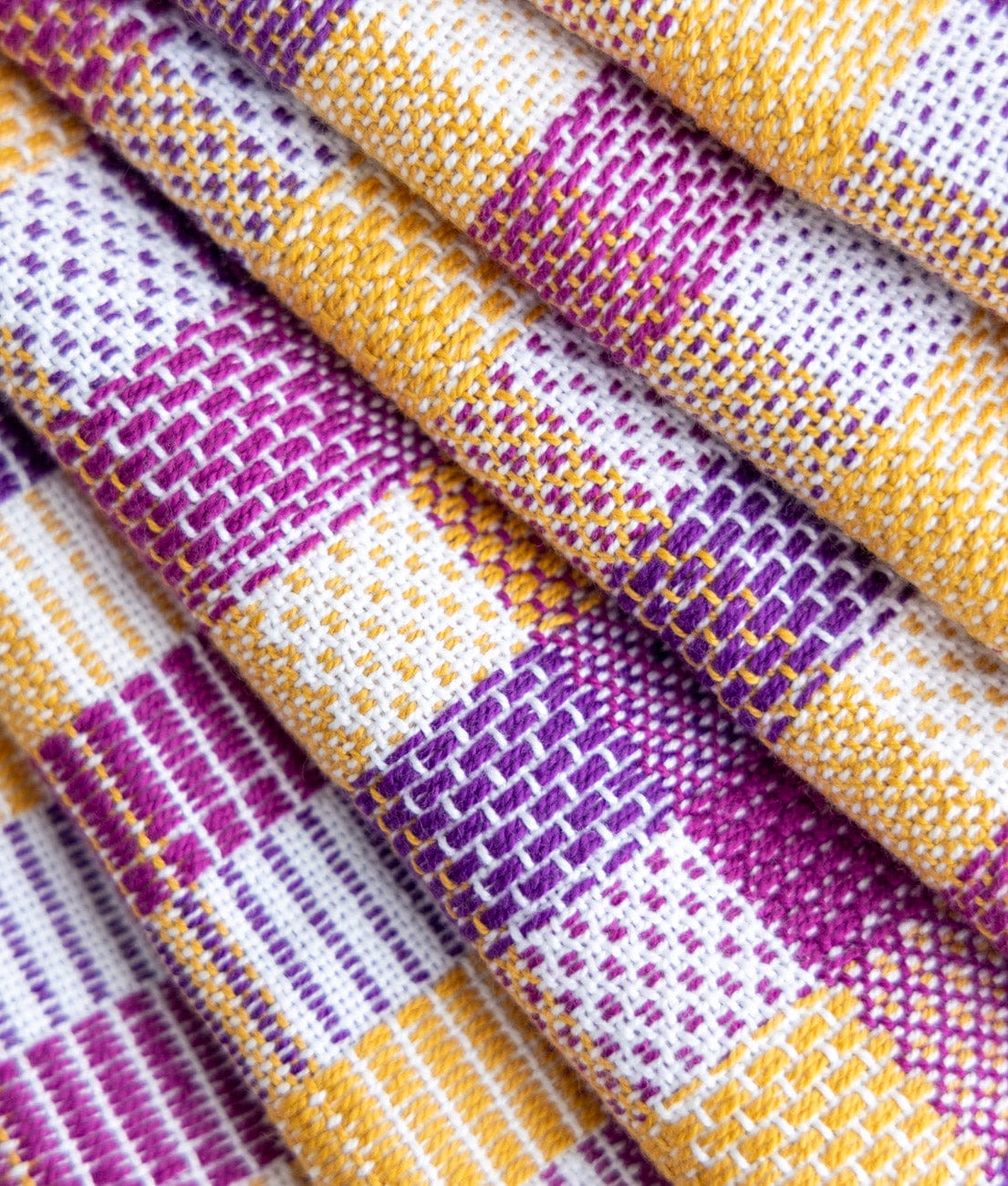

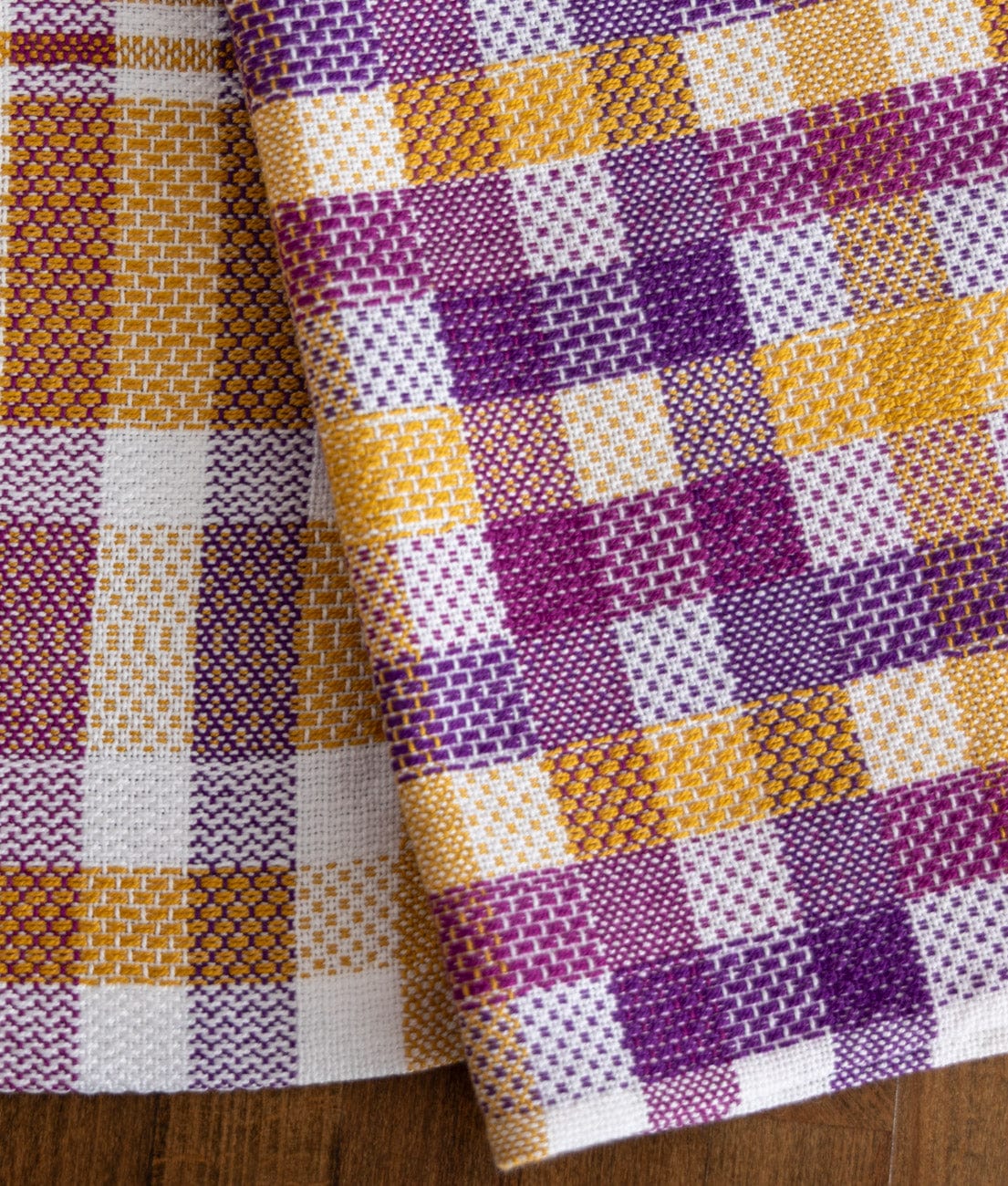

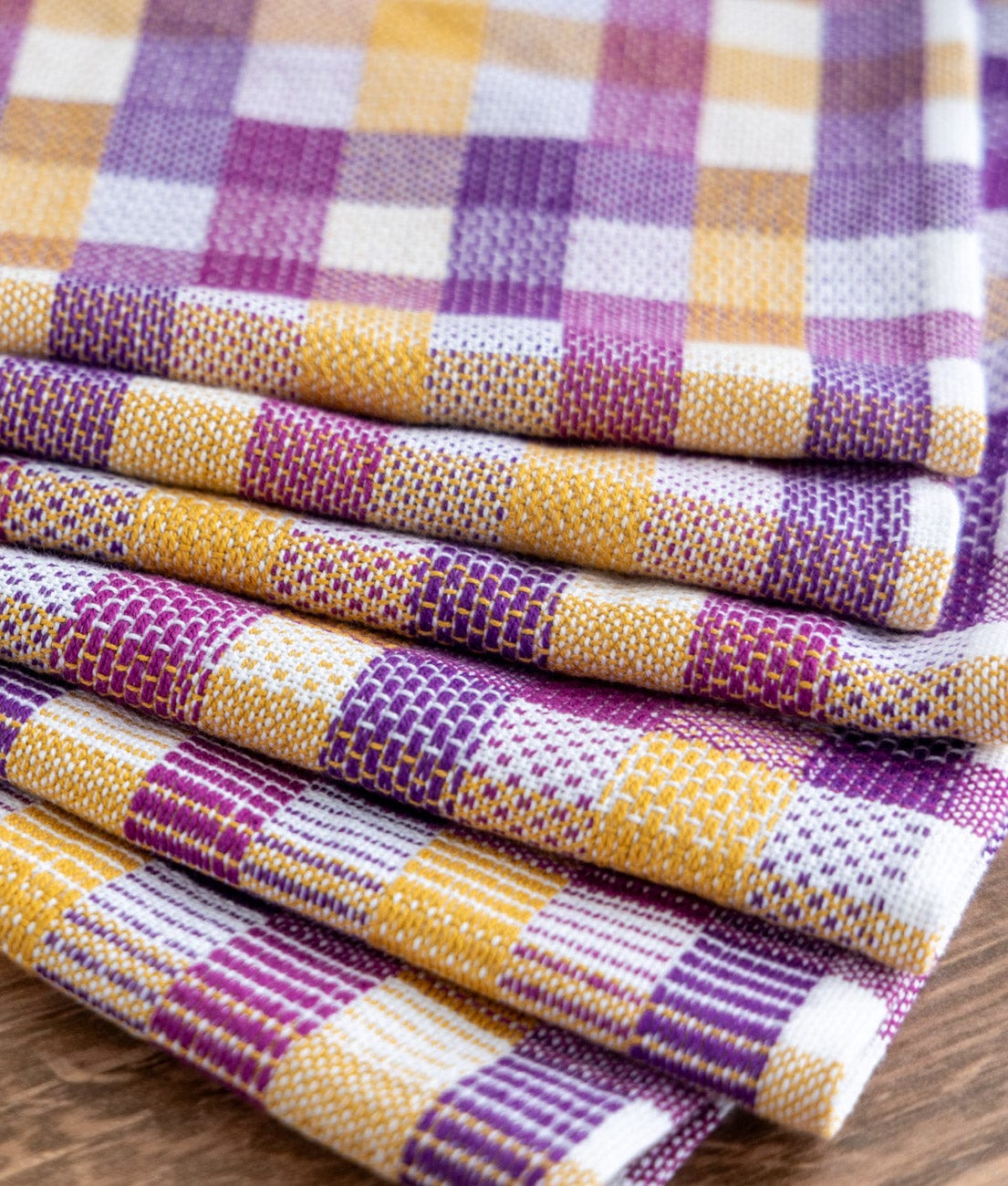

The Bit Map Towels pattern weaves this beautiful block-weave structure in four full-size kitchen towels. With this summer & winter design, Felicia wanted to experiment with colour mixing and blending with each block while working with a minimalist colour palette. In these towels, we use a complementary colour combination (yellow and purple are complementary colours) with a neutral (white).

The weaving drafts explore treadling variations for Summer & Winter, including singles, paired O's, and dukagång.

The pattern is free for School of SweetGeorgia members, and can be found on the first lesson, 0.1 Weaving Summer & Winter Materials page.

Please see our Weaving Summer & Winter on 4-Shafts course for more detailed instructions and resources on how to weave summer & winter. You will need an All-Access membership to the School of SweetGeorgia to download the pattern PDF for free. As a member, you can explore over 100 courses on weaving, dyeing, spinning, knitting and more! All-Access membership also grants you access to the community forums; get support from course instructors and have conversations with fellow members in the forums threads or one of our many virtual meet-ups!

Get the yarn set here.

SKILL LEVEL

Intermediate

FINISHED MEASUREMENTS

Each towel measures approximately 21 1/2" / 54.6 cm wide x 31 1/2" / 80 cm long

YARN

Warp & Weft: 5 tubes Maurice Brassard 8/2 Unmercerized Cotton (1680 yd / 1530 m per 8 oz / 227 g tube; 3360 ypp/ 6775 mpkg; 100% Cotton); 2 tubes in Blanchi 101 (White), 1 tube each in Mauve Foncé 4273 (Dark Purple), Mauve Pâle 5120 (Light Purple), Jaune Or 3161 (Gold).

EQUIPMENT & TOOLS

Loom: 4-shaft loom with 6 treadles at least 26" / 66 cm wide

Tools: 8-dent (sleyed 2 per dent) or 12-dent reed (sleyed 1-1-2), (4) boat or stick shuttles, bobbins and bobbin winder (if you are using a boat shuttle), reed hook, paper or warp sticks for beaming the warp (depending on how you dress your loom), scissors, measuring tape, yarn needle.

STRUCTURE

Weave Structure: Summer & Winter

Warp Length: 5 yd / 4.6 m (includes 40" / 101.6 cm for sampling, loom waste, take-up, and shrinkage) to weave 4 towels

Warp Ends: 400 ends, plus 2 floating selvedges = 402

Warp Sett: 16 epi / 6.3 epcm

Weft Sett: Approximately 29 ppi / 11.4 ppcm for Singles to 32 ppi / 12.6 ppcm for Paired and Dukagång. 16 ppi / 6.3 ppcm for plain weave hems.

Width in Reed: 25 1/8" / 63.8 cm

Woven Length: 35" / 88.9 cm for each towel = 140" / 355.6 cm total length. 4 towels total.
